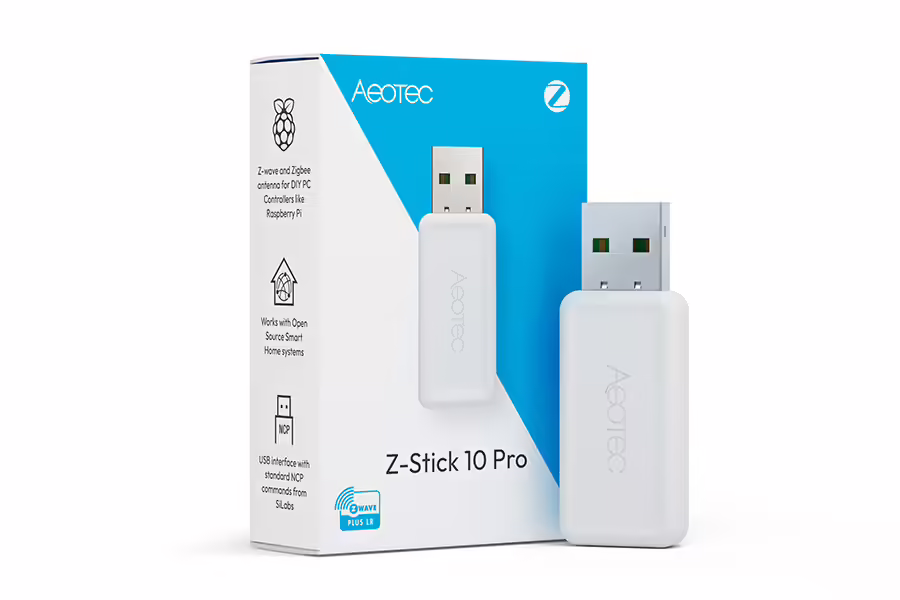

Z-Stick 10 Pro
+
The ultimate dual protocol
Smart Home Hub
The Z-Stick 10 Pro lets you create a custom smart home hub with full control and flexibility. Supporting both
Z-Wave and Zigbee, it seamlessly connects devices and works with platforms like Home Assistant for a
secure, cloud-free experience. With a compact design, 1-mile range, and cross-platform compatibility, it
ensures reliable local control. Powered by Silicon Labs tech, it delivers top performance and connectivity.
Compatible with over 8000 devices out of 2 ecosystems
The Z-Stick 10 Pro combines Z-Wave and Zigbee for seamless control of various devices. Z-Wave offers reliability and long range, while Zigbee excels in energy efficiency and scalability. With both in one dongle, you can easily manage lights, sensors, locks, and thermostats across protocols, creating a unified smart home.
Cross platform compatible
The Z-Stick 10 Pro offers wide compatibility with popular open-source systems like HomeAssistant, Zigbee2MQTT, and OpenHAB, making it the perfect choice for tech enthusiasts and DIYers. Running on windows, Linux or Mac systems makes the Z-Stick 10 Pro working for any type of DIY solutions or controller software. Its dual Z-Wave and Zigbee support allows seamless integration with diverse smart home devices, giving you the freedom to build and customize your ideal smart home ecosystem.

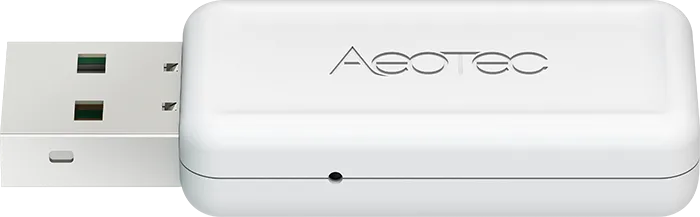

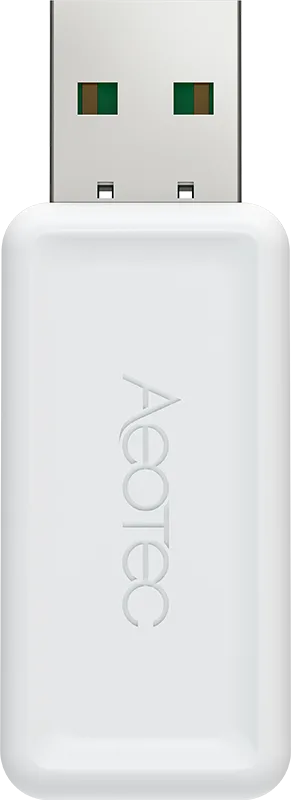

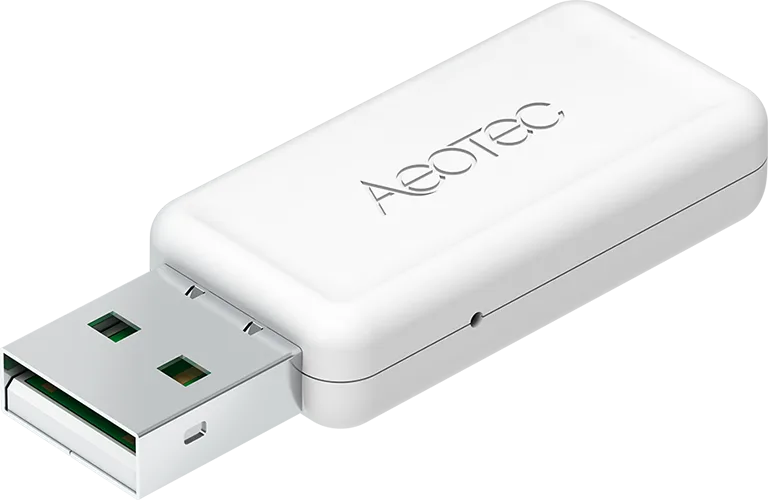

Compact & slim design
The slim design of the Z-Stick 10 Pro ensures it
fits easily into any setup, minimizing clutter and
leaving neighboring USB ports free. Perfect for
compact smart home gateways, it blends
convenience with sleek aesthetics.

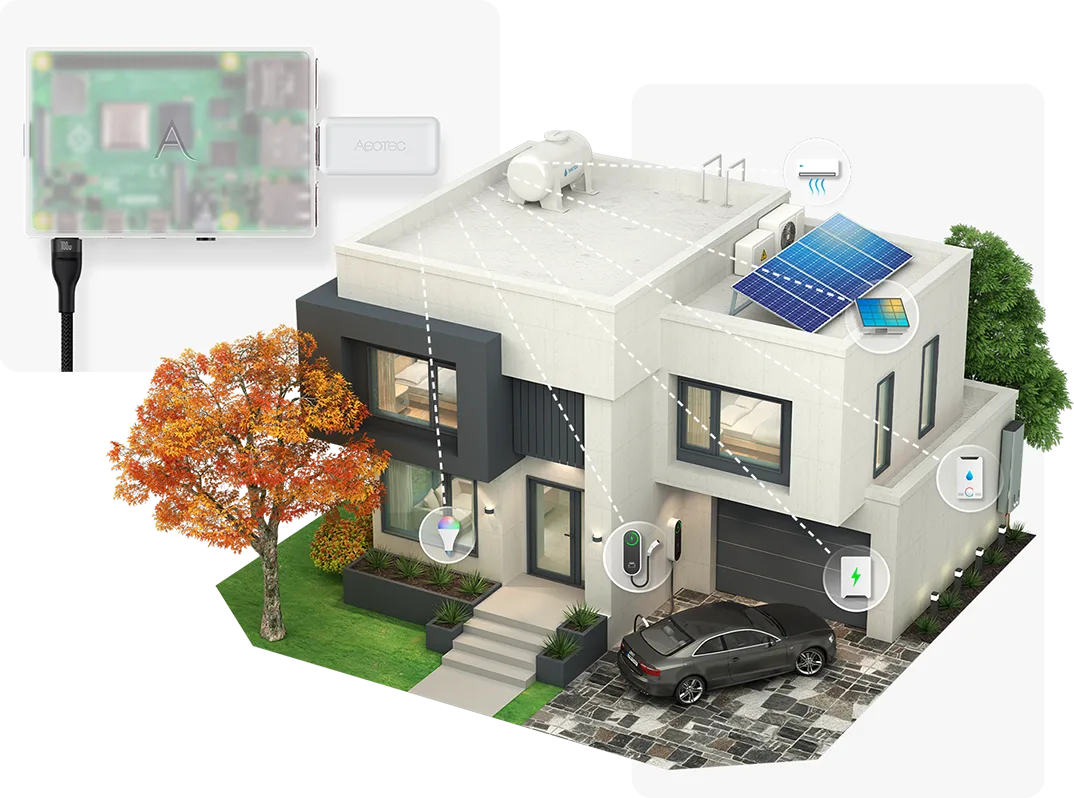

Local and safe
Smart Home
Local control of your smart home devices ensures faster response times, greater reliability, and enhanced privacy by keeping all operations within your home network – without relying on an external cloud. This means your devices remain functional even during internet outages, and sensitive data stays secure without being transmitted to third-party servers. By eliminating cloud dependency, you gain full control, better security, and a more seamless smart home experience.

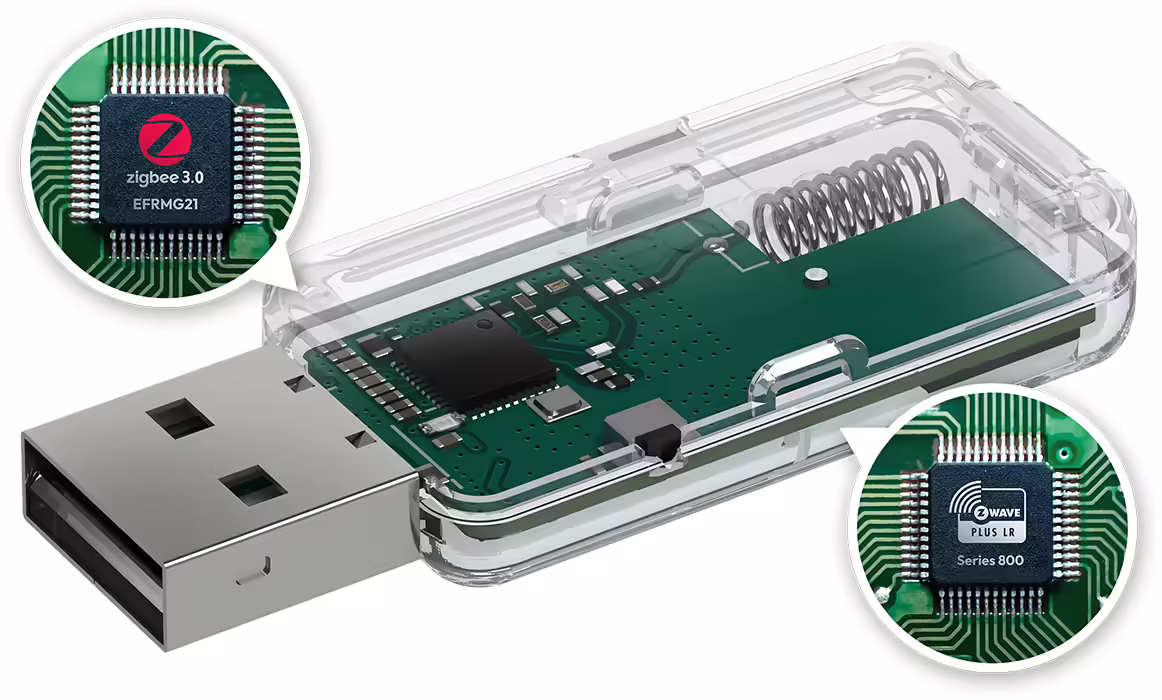

Outstanding Performance
The Z-Stick 10 Pro is powered by the latest Silicon Labs technology for both Z-Wave EFR32ZG23 and Zigbee EFR32MG21, ensuring top-notch performance, enhanced range, and robust connectivity. This cutting-edge hardware delivers faster communication, improved energy efficiency, and reliable operation for your smart home ecosystem.
Z-Wave Long Range for
best radio performance
The Z-Stick 10 Pro is powered by the latest Silicon Labs technology for both Z-Wave EFR32ZG23 and Zigbee EFR32MG21, ensuring top-notch performance, enhanced range, and robust connectivity. This cutting-edge hardware delivers faster communication, improved energy efficiency, and reliable operation for your smart home ecosystem.
Technical details
Product Name: Z-Stick 10 Pro
Power Supply: USB DC 4.75V to 5.25V
Model Number: ZWA060
ZWA060-A: US Frequency 908,42 Mhz + Zigbee 3.0
ZWA060-B: AU Frequency 921,42 Mhz+ Zigbee 3.0
ZWA060-C: EU frequency 868,42 Mhz+ Zigbee 3.0
Product Weight: 3.5 g
Product Dimensions: 49 x 17 x 7 mm
Zigbee 3.0
Zigbee Chip: EFR32MG21
Zigbee Version: Zigbee 3.0
EZSP version: 0x08
Stack type: 0x02
Stack version: 6.10.9
Zigbee Frequency: 2.4 GHz
Sensitivity of the RF receiver:
TX Power: +20 dBm
RX sensitivity: -99 dBm
Operating Distance: 200m max distance (clean open air)
Z-Wave
Library Type: Bridge Controller
Device Type: Z-Wave USB Controller
Z-Wave Plus Certified, Z-Wave Long Range, Z-Wave SmartStart
Z-Wave Chip: EFR32ZG23
Z-Wave Version: Series 800 / Gen8
Z-Wave Security: S2 native
Z-Wave SDK: 7.22.0 or later
Sensitivity of the RF receiver:
US: TX Power: +9,3 dBm
RX sensitivity: -97.5 dBm
EU/AU: TX Power: +4,8 dBm
RX sensitivity: -97.5 dBm
Operating Distance (Z-Wave – Mesh Network):
US: More than 70 m / 230 ft indoor
Up to 150 m / 500 ft outdoors
EU: Up to 50 m / 130 ft indoor
Up to 150 m / 500 ft outdoors
Operating Distance (Z-Wave Long Range):
US LR: More than 100 m / 328 ft indoor
Up to 1000 m / 3280 ft outdoors

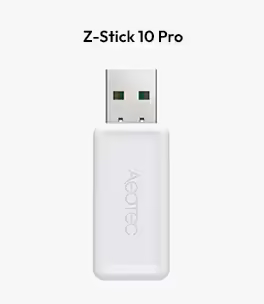

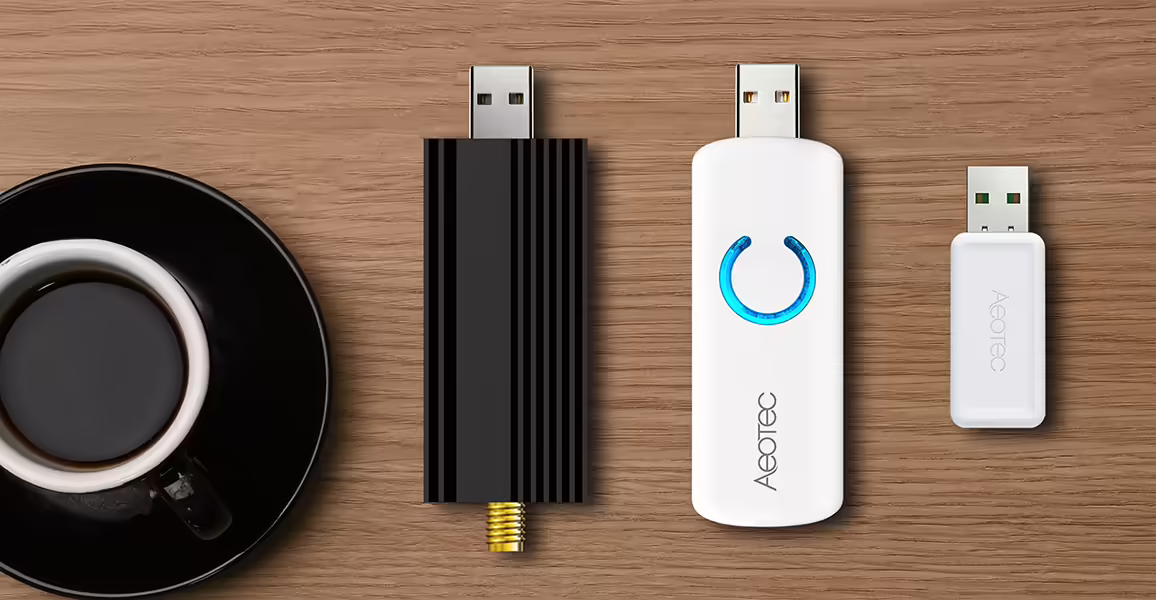

Z-Stick 10 Pro

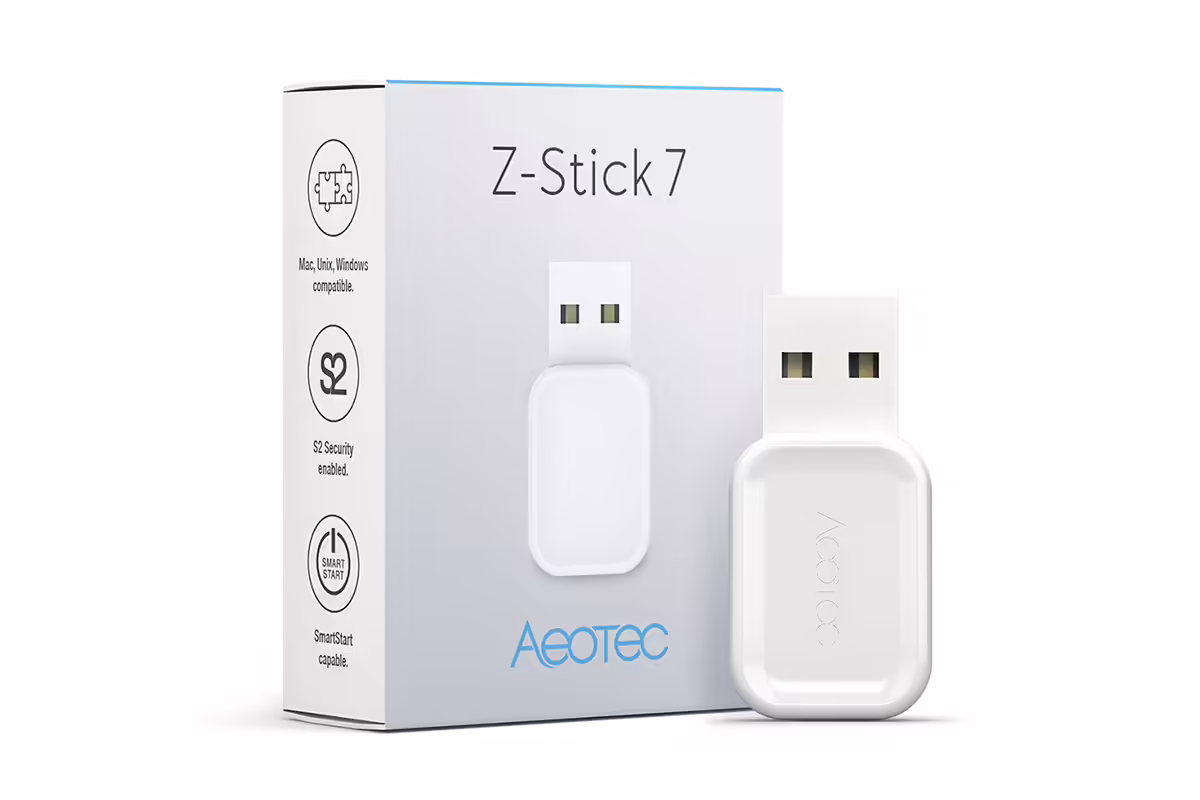

Z-Stick 7

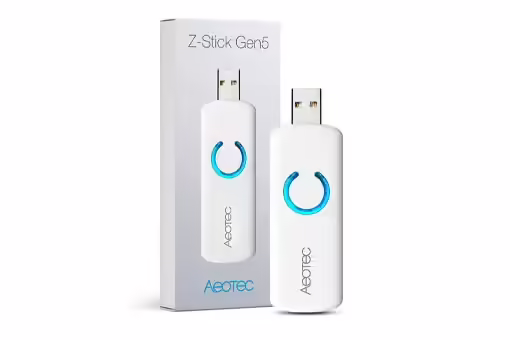

Z-Stick Gen5+

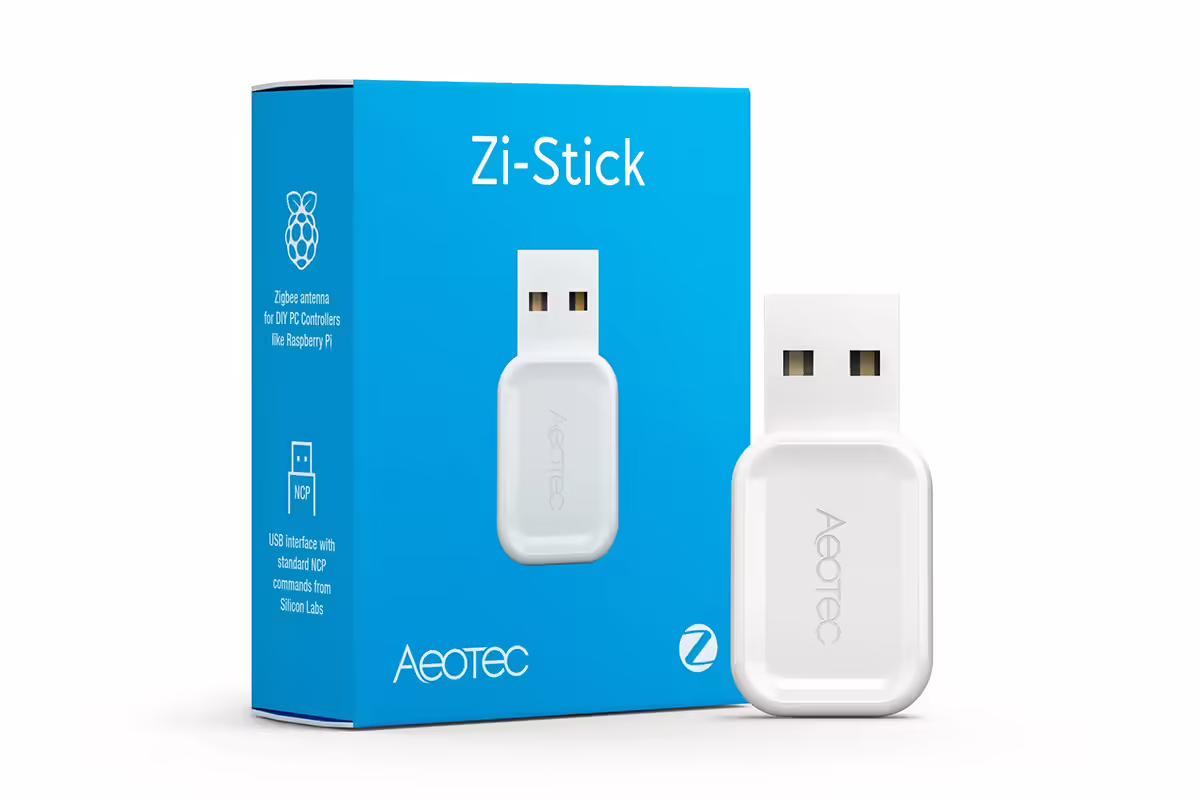

Zi-Stick
